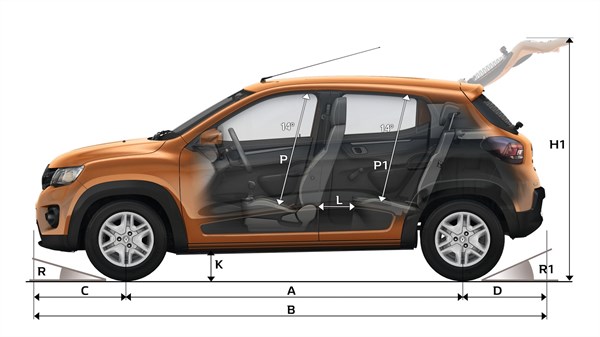

A | Wheelbase | 2423 |
B | Overall length | 3680 |
C | Front overhang | 652 |
D | Rear overhang | 604 |

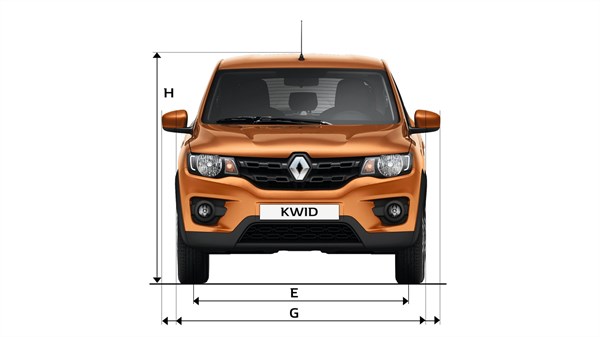

E | Front track | 1385 |
G | Overall width with/without mirrors | 1586/1752 |
H | Height of the vehicle | 1474 |
K | Ground clearance | 180 |
L | Knee radious | 117 |
P | Height of front seats roof lining | 898 |
P1 | Height under rear roof lining | 846 |
R | Exit angle in degrees (unladen weight) | 25° |
R1 | Rear bumpers angle in degrees (unladen weight) | 42° |
H1 | Overall unladen height with tailgate open | 1888 |

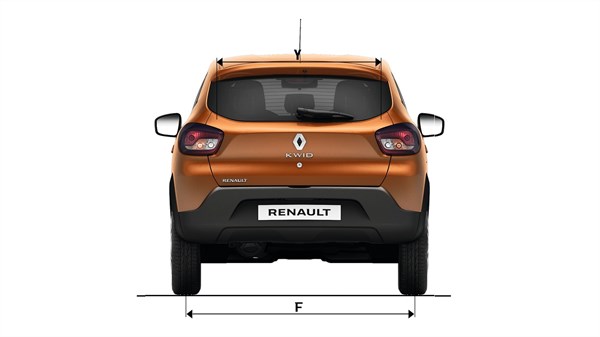

F | Rear track | 1365 |

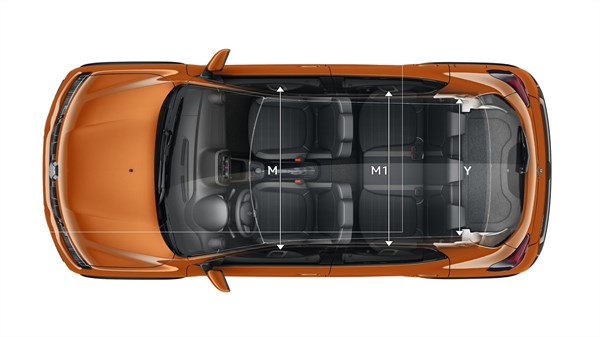

M | Width at elbow in front | 1295 |
M1 | Width at elbow in rear | 1265 |
Y | Inside width between wheel arches | 926 |

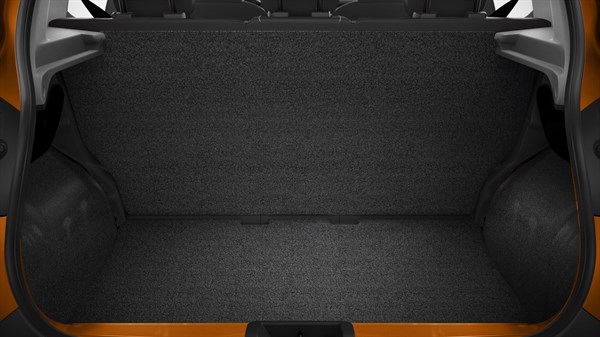

Announced trunk volume | 290 |
Cabin volume | 1100 |
